Flipped again

It took some more rework to get the centerboard to work smoothly: it was getting stuck on the way down. I had to remove the pivot bolt, to which I had foolishly added dabs of epoxy compound at the head and nut ends to seal the holes. It was a devil to remove, with the head getting badly stripped. A lot of sweat equity later, acquired while lying under the boat, I removed the CB and found that the forward end was rubbing against the CB trunk. After rasping a couple of millimeters off the right place and refinishing the  edge, I drilled out the pivot hole, filled it with epoxy, drilled through again, fitted a new bolt and problem solved finally.

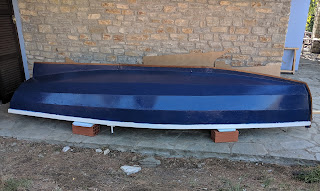

The last touches involved leathering the oars and tying loops of line to fit over the thole pins (visible in the photo). Meanwhile my attempt to acquire a boat cover failed, like everything else involving people and purchases off the island in August: first the supplier was closed, then they called it was coming, then called again to say the warehouse was closed until the end of August, which will be too late. So I decided that storing a fully finished boat upside down should be safe, and I got three strong guys to help me lift the boat, remove the bricks and cradles, flip it and lay it on four bricks with styrofoam on top (photo, after touching up puttied holes with paint). This is where it will await my return in the spring. The registration paperwork I hope to complete before I leave, so I will have to get a trailer and hitch and finish the rigging, which is mercifully simple. With any luck I will launch it before next summer. Thanks for reading!

Oars and mast step

While all the rest was going on, I also made oars from 6x4 cm lumber (nominal, it is less since it's planed) cut to 2.5 m lengths. One of the pieces had served as the strongback on which the boat was built. I edge-glued 2x4.7 cm pieces on either side to make the blades. The sawing and electric and hand planing jobs were messy but nothing that a bit of epoxy filleting and lots of sanding could not fix. I rasped and sanded the oar handles and leathers (where the oar meets the thole pin) to cylindrical shapes. The oars are now epoxied and painted. I will fit strips of actual leather to reduce chafing against the thole pins, which are already in place. The end result is a hybrid between the blocky, square cross-section, narrow-bladed oars of the Mediterranean and the slimmer, round-shafted northern oars with laminated blades.

I also made and fitted the mast step. It is a square piece made out of iroko tropical hardwood, with a hole cut into it with a hole saw. I purposely made the hole slightly too small, and it took some rasping and sanding both the hole and the mast tip to assure a good fit. Then I glued and screwed the piece to a plywood base already in place on the bottom, resting on the keel and garboard cleats (I already described how I had to chisel channels for a good fit over the cleats).  Final trials of the mast need a lot of headroom and will have to wait until the boat is out of its sheltered terrace space. At that point I will fit the cross-piece that bolts onto the mast partner.

I also put two coats of epoxy on the spars (mast and sprit) and I am laying on several coats of spar varnish (photo). At some point I will lace the sail on and fit the snotter and brailing line. I also put on the gudgeons and pintles and fitted the moving part of the rudder to its top part, as well as the pivoting tiller to the rudder (last photo). It took some rasping and adjusting, so I will have t touch up the finish.

Meanwhile I inquired about an outboard motor, registering the boat and a trailer and hitch. I now know what paperwork I need, which includes certification by a naval architect, complete receipts for materials and a notarized sworn statement that I personally built the boat. I will pay a firm that specializes in all that take care of the registration. Between peak demand for trailers, trailer manufacturers closing for staff vacations and some car trouble, the trailer and hitch are proving more difficult to  procure. Since I am leaving Greece in about a month, I may have to postpone some or all of these for next spring. Until then I may use a borrowed trailer to test-launch the boat to see how she floats.

Centerboard, rudder and spars

Since the boat is right side up, I had to lift it off the ground by at least 45 cm (18") to fit the CB and put it in place when it was fully finished. I did it with the help of two people and several bricks (first photo). The CB pivots around a 6 mm (1/4 inch) bolt. The rudder needed a pivot bolt of its own so it can be lifted with a line. Gudgeons and pintles attach it to the transom. The tiller I made from pine lumber, and its jaws from two 12 mm pieces of plywood. There is a pivot bolt attaching the tiller to the rudder top, so the tiller can move up and down as needed, especially with the outboard I plan  to use.

Sandwiching lead shot inside the centerboard without mixing it with glue proved very ill-advised. The shot was small, and the gluing of the plywood layers was not tight enough, so the shot was swishing around inside.  I was force to prize the layers apart, not an easy thing given how strong epoxy is. Then I mixed the lead with latex caulk and reglued the CB. The result was an imperfect lamination that made the CB too thick to fit in the CB trunk without getting stuck. The next inevitable step was to use an electric planer to remove a couple of millimeters from one side of the CB. Not something I would recommend except in extremis. In any case, it was done with a lot of flying shavings and some gouging, but after sanding, a little puttying and more sanding the CB was ready for more work.

The work in question was fitting a block to a corner of the CB for raising and lowering it. It involved cutting a semi-circular piece off the top forward corner and chiseling channels for the two stainless steel straps that are bolted to the CB on one end and the sheave at the free end (photo). Both bolts had to be cut very short to fit inside the 24 mm-wide CB trunk. Another sheave is fitted on the corresponding corner of the CB trunk for the lifting/dropping line. Because of the extra 4.5 kg of ballast and its leverage, the fittings needed to be sturdy. The 2:1 purchase from the blocks helps. The CB was coated with epoxy but no paint or varnish, since it will be invisible and protected from UV rays. Fitting the CB into its trunk and putting in the pivot bolt were tough: imagine being on your back with a lead-weighted CB on your chest, under a boat on bricks that could come tumbling down on you, trying to thread a quarter-inch bolt through three holes that need to be precisely aligned. My wife watched over me just in case. I'm happy to say that the CB and its raising and dropping bock and tackle system were fitted well and work fine (third photo).

Before I finished assembling the CB block system, I made the spars. The mast I made from a 4 m long (13' 1") piece of fir, 75 mm (3 inches) square. As in previous times, I cut the corners off at 45 degrees (this time with a hand-operated rotary saw since I don't have a table saw) to make an octagon. I went surprisingly well. Then I used an electric planer and a palm sander to make the mast round. The sprit I made by laminating two 4 m long boards. I had to extend it to 4.3 m, which I did by gluing a lumber extension between two plywood jaws. The latter form a shallow slot for the snotter, the improbably named line that holds the sprit up and adjusts its tension. Planing and sanding turned the sprit approximately round too. Both spars are visible in the next photo.
