Sunday, September 4, 2011

Seats and cabinetry



The last couple of weeks have involved putting the curves on forward bulkheads and transom, and working on the inside of the boat, something that is very picky and borders on cabinetry.  I am building three flip-up doors into the seat tops, which means putting in supports and framing, joints etc.  After cutting all the pieces from aspen (door frames), plywood (reinforcements) and pine (the rest), putting in all the notches, etc., I put one coat of epoxy on the the entire inside of the boat, except the bottom (too hard to reach for now, plus there's no hurry) and the outsides of the seat risers (also hard to reach, and I need to do a careful job since they will be visible and left unpainted, with epoxy and varnish).  In the process I had one more episode of the epoxy overheating and solidifying too early (yesterday was a very hot day).  So now I am keeping the epoxy containers in the fridge, at least part of the time.

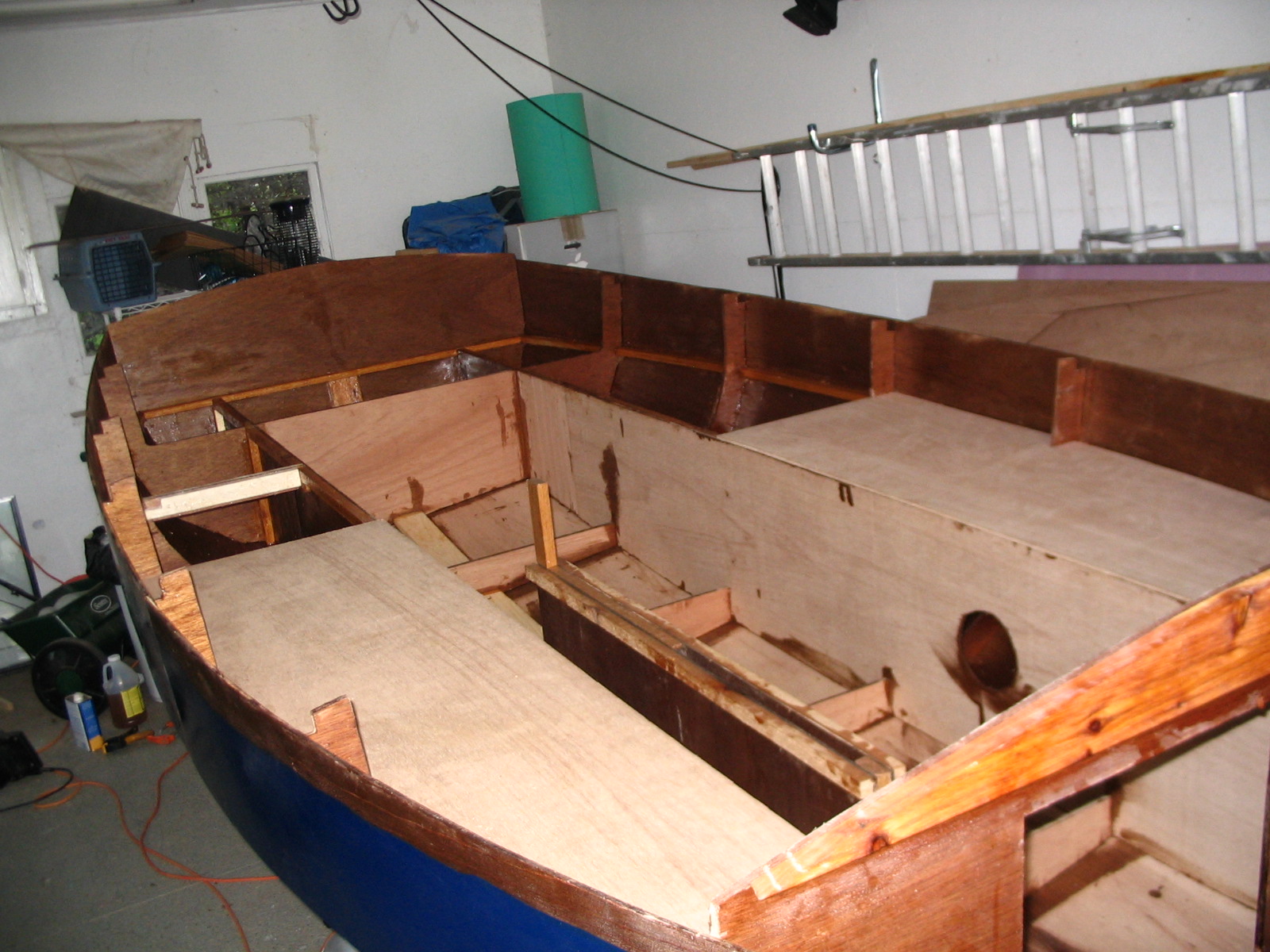

I then cut seat tops (see above for forward half), except where the doors will go, and notched them for the frames.  This is harder than it sounds, since the frames are not exactly square.  I also made my first measuring and cutting mistake, which left a gap about 10 mm wide (about 3/8 inch) over part of one seat stringer, on the sheer side.  Not wanting to waste plywood, and given that I don't have much to spare, I will fill it with a thin sliver of ply and epoxy fillet.

Today I glued all the framing pieces (see detail from aft seat/storage area--the crosspiece is not in yet).  Next the inwales will be glued in.  Then the seat tops will be epoxied on the inside, and reinforced where needed.  After a second coat of epoxy on the inside of the seats, the tops will go on, including hinging the doors.  The next step will be braces for the side decks.

Cheers,

boatbuilder
